Land Originated Call to Roaming Subscriber

Samples Index | << Previous Diagram

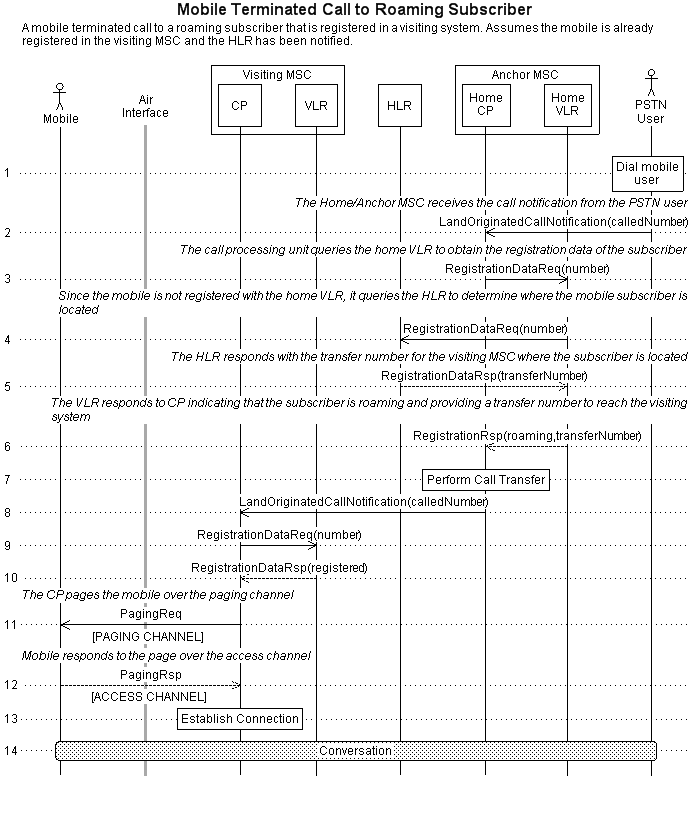

The diagram in figure 1 was created using Sequence Diagram Editor and represents a land originated call to a roaming subscriber scenario. Click here for the PDF export of the cellular systems diagrams. You can choose whether to show/hide the notes above each of the messages when displaying the diagram.

Figure 1 - Cellular System Land Originated Call (Roaming)
